Bus Bars
Adding electrical accessories to your vehicle has never been easier! Devices connected to the bus bars run from the Aux battery and will not drain your cranking battery.
3 sizes of studs for connecting heavy wires like your winch, stereo amps, fuse boxes, etc. Connect smaller ring terminals to the small screws.
Boost Switch
- Auto - Connects the batteries automatically based on their voltage level
- On - Manually connects the batteries together just like jumper cables to help start the engine
- Off - Manually separates the batteries
How it Works
The heart of the system is a smart battery combiner that handles connecting / disconnecting the batteries automatically.
When the engine starts, it allows the engine to charge the cranking battery first, then links the batteries together in parallel so they can both be charged by the alternator.
Once it sees the voltage drop below ~12.7v for a minute, it will separate the batteries. Your accessories connected to the bus bars continue to run from the second battery and won't drain your cranking battery.

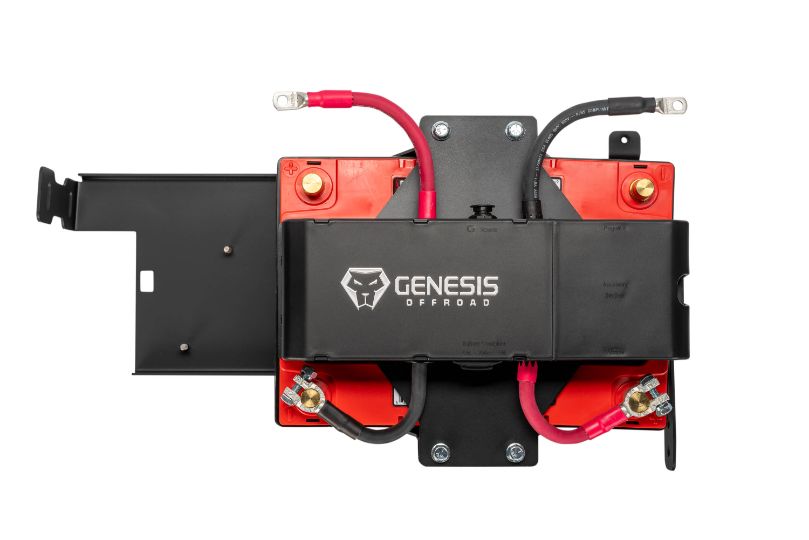

System Includes
- Gen 3 Power Hub
- Smart battery combiner
- Boost switch
- Accessory Bus bars
- G Screen port
- All wiring
- Steel Battery Tray
- Factory fuse box mount
- Evap solenoid relocation mount
- Installation hardware
- 2007 - 2011 models will receive a wire harness extension for the evap solenoid
Battery Options
- Requires 2 matching BCI Group 34 size batteries.
- Batteries must be the same physical size for the lid to securely hold them in place
- We recommend the Full Throttle FT825-34 or the Odyssey ODX-AGM34. ***Optima batteries are NOT compatible***.
- Traditional wet lead acid batteries are NOT recommended, and mixing battery chemistry can cause damage to both batteries.
- Note the stock battery is NOT compatible with this kit
