?NON USA MODELS ONLY
- Front Coil Spring Specs
- C59-134 (40mm-1.5") Stock Weight
- C59-296 (50mm-2") Stock Load / (40mm-1.5") Up to 130lb
- C59-300 (40mm-1.5") 150lb-220lb or (75mm-3.0") no extra load
- C59-302 (75mm-3.0") 120lb-220lb or (90mm-3.5") 110lbs max load
- C59-314 (90mm-3.5") 110lb-175lb
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminium Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM-HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design

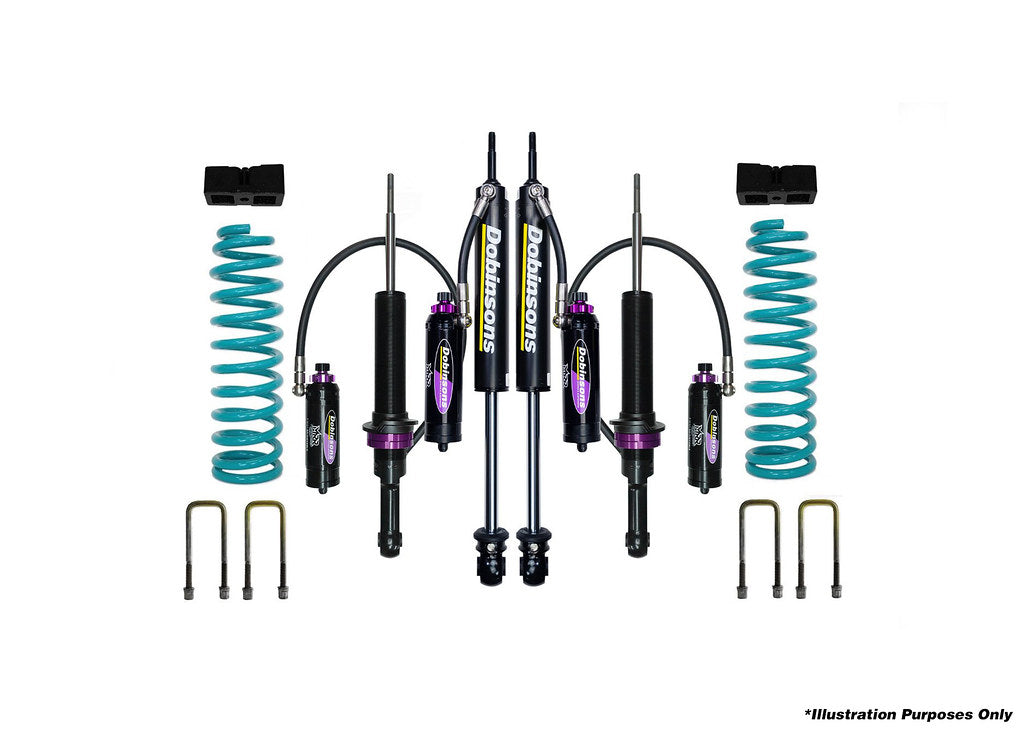

- Includes 2 Front MRR Struts, 2 Rear MRR Shocks, 2 Front Coil Springs, Rear Quickride lift blocks and U bolts.
- Rear Quickride lift blocks and U bolts lift 2 inches only no extra weight.
Strut Assembly Video
Front Strut Assembly Instructions
****Coil seat should be set at 190mm(7.48") front the strut bushing eye. Picture black and white on the listing is to reference how to measure. Please check our instructions section or reach out if you have any questions. If done incorrectly you can damage the shocks, springs and vehicle.*****
