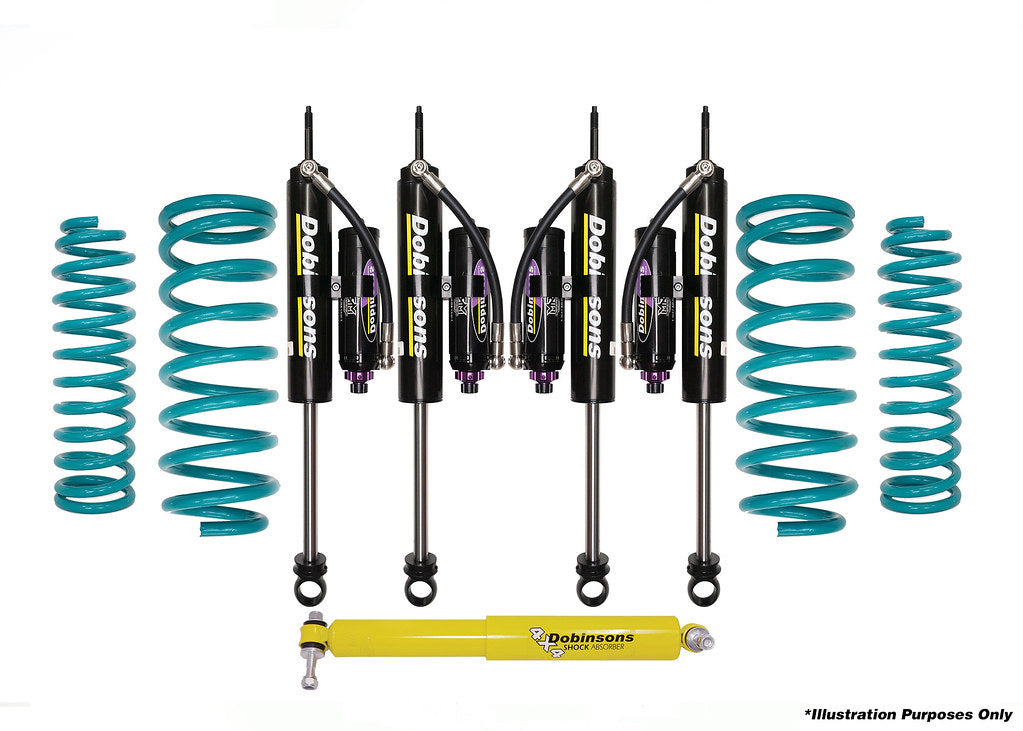

• Rear Coil Spring Specs:
• C59-269V - Variable Rate - 1.75" with stock weight
• C59-169 - Linear Rate - 2.0" with up to 220LBS
• C59-167 - Linear Rate - 2.5" with up to 220LBS
• C59-223V - Variable Rate - 1.75" with up to 220LBS
• C59-171 - Linear Rate - 2.0" with 750LBS Constant Load
• 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
• 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
• 20 Stage Low Speed Compression - For creepy crawling and cornering
• 15 Stage Rebound - Control your coils, prevent bucking
• 60mm CNC Machined High Flow Billet Aluminium Race Piston
• 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
• Upgraded 3 Stage FKM-HNBR Sealing System
• TSUGAMITM CNC machined components for precise tolerances

• ParkerTM Braided High Pressure Hoses
• 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
• Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
• 60mm Full 6063 aluminum remote reservoir
• Lightweight CNC Machined Low Friction floating piston
• High Quality O.E.M. Grade Natural Rubber Bushings
• Single Piece Lower Leg
• EDP Surface Protection
• Direct Bolt-On Design
• CNC TIG Precision Welded Body End Mounts
• Fully Rebuildable Design
