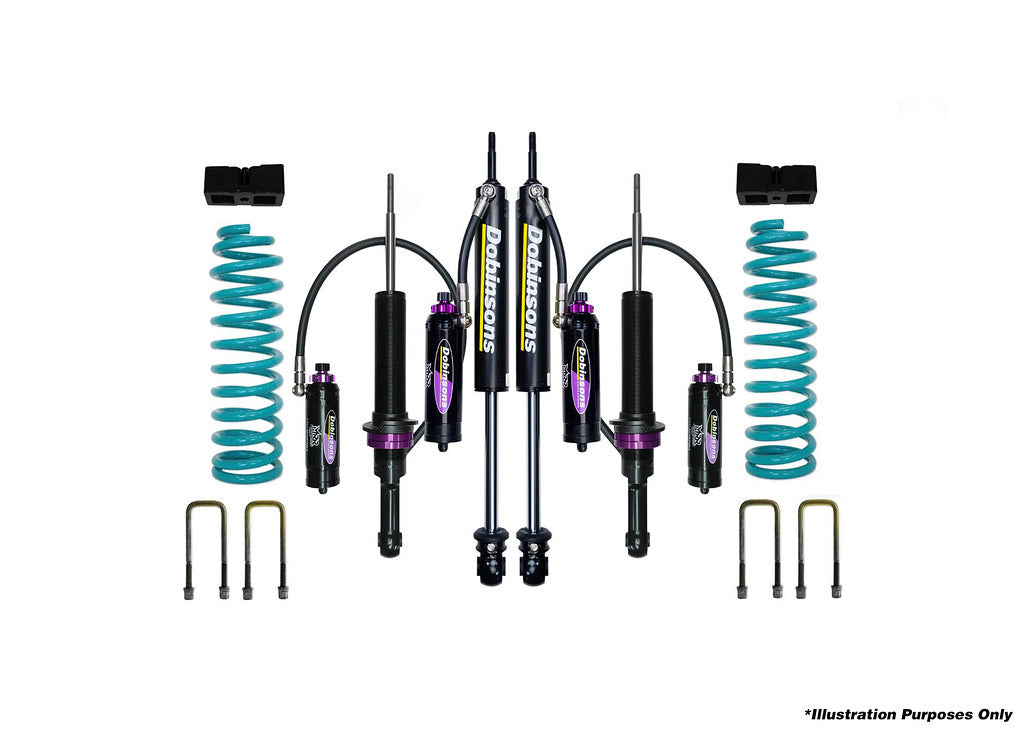

Dobinsons 2.0" to 3.0" MRR 3-Way Adjustable Lift Kit for Toyota Hilux Revo Dual Cab 2015 and on with Quick Ride Rear - DSSKITMRA52 - DSSKITMRA52

Dobinsons 2.0" to 3.0" MRR 3-Way Adjustable Lift Kit for Toyota Hilux Revo Dual Cab 2015 and on with Quick Ride Rear - DSSKITMRA52 - DSSKITMRA52

$2,865.00
$2,865.00
Sale Sold out

  • Front Coil Spring Specs:
    • C59-350 (50mm-2") up to 100lb
    • C59-354 (50mm-2") 100-135lb / (75mm-3") Stock Weight
    • C59-318 (75mm-3") 75-110lb
    • C59-736 (75mm-3") 135-220lb
  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound - Control your coils, prevent bucking
  • 50mm CNC Machined High Flow Billet Aluminium Race Piston
  • 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
  • Upgraded 3 Stage FKM-HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design


Strut Assembly Video

Reservoir Installation Instructions

Front Strut Assembly Instructions
